Protection Around High Voltage Lines
Before working under or near overhead power lines, ensure that you maintain a safe distance to the lines and, for very high-voltage lines, ground any equipment such as cranes that can become energized.

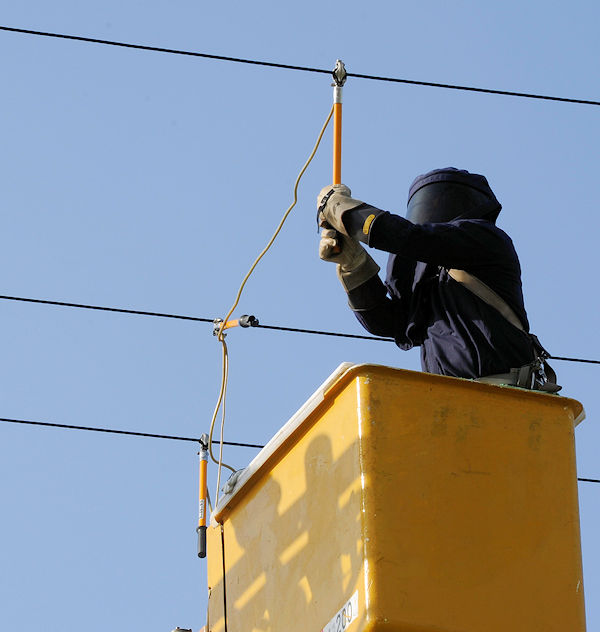

If working on power lines, ensure that the lines have been deenergized and grounded by the owner or operator of the lines. Other protective measures like guarding or insulating the lines help prevent accidental contact.
Employees unqualified to work with electricity, as well as mechanical equipment, should remain at least 10 feet away from overhead power lines. If the voltage is more than 50,000 volts, the clearance increases by 4 inches for each additional 10,000 volts.
When mechanical equipment is operated near overhead lines, employees standing on the ground should avoid contact with the equipment unless it is located outside the danger zone. When factoring the safe standoff distance, be sure to consider the equipment's maximum reach.
Safe practices that will save your life:
- Do NOT assume a downed conductor is safe simply because it is on the ground or it is not sparking.
- Do NOT assume that all coated, weatherproof or insulated wire is just telephone, television or fiber-optic cable.
- Low-hanging wires still have voltage potential even if they are not touching the ground. So, "don't touch them." Everything is energized until tested to be de-energized.
- Never go near a downed or fallen electric power line. Always assume that it is energized. Touching it could be fatal.
- Electricity can spread outward through the ground in a circular shape from the point of contact. As you move away from the center, large differences in voltages can be created.
- Never drive over downed power lines. Assume that they are energized. And, even if they are not, downed lines can become entangled in your equipment or vehicle.
- If contact is made with an energized power line while you are in a vehicle, remain calm and do not get out unless the vehicle is on fire. If possible, call for help.
- If you must exit any equipment because of fire or other safety reasons, try to jump completely clear, making sure that you do not touch the equipment and the ground at the same time. Land with both feet together and shuffle away in small steps to minimize the path of electric current and avoid electrical shock. Be careful to maintain your balance.
Knowledge Check Choose the best answer for the question.
3-8. If contact is made with an energized power line while you are in a vehicle, be sure to _____.
You forgot to answer the question!
