Adjacent Structures

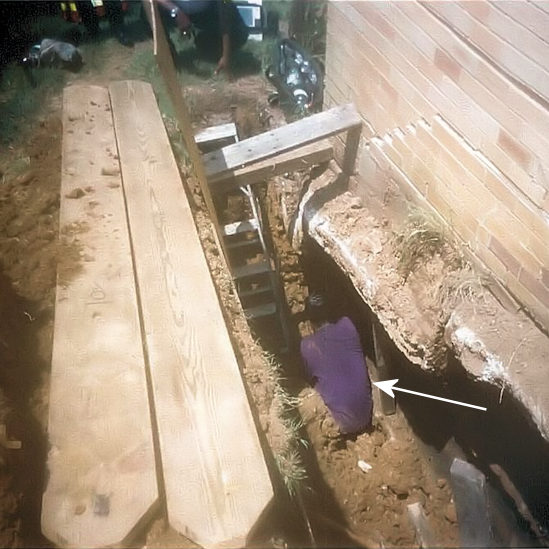

The Excavation standards require employers to provide support systems, such as shoring, bracing, or underpinning, when necessary to ensure that adjacent structures (including adjoining buildings, walls, sidewalks and pavements) remain stable for the protection of workers. The standards also prohibit excavation below the base or footing of any foundation or retaining wall that could be reasonably expected to pose a hazard to workers unless:
- The employer provides a support system, such as underpinning;
- The excavation is in stable rock; or
- A registered professional engineer determines that the structure is far enough away from the excavation that it would not be affected by the excavation activity or that the excavation work will not pose a hazard to workers.
Excavations under sidewalks and pavements are prohibited unless you provide an appropriately designed support system or another effective means of support. There must not be any indications of a possible cave-in (while the trench is open) below the bottom of the support system. Also, you must coordinate the installation of support systems closely with the excavation work.
Once the work is finished, you are required to backfill the excavation when you take apart the protective system. After the excavation is cleared, remove the protective system from the bottom up.
Knowledge Check Choose the best answer for the question.
5-7. In which situation would an excavation next to a foundation or retaining wall be initially prohibited?
You forgot to answer the question!
