Supported Scaffolds

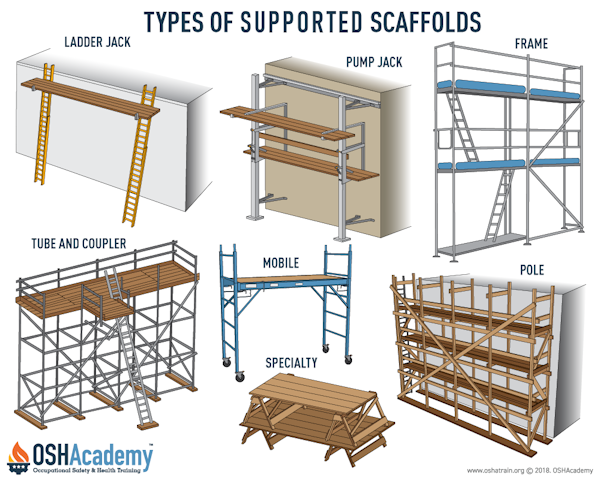

Supported scaffolds: Supported scaffolds consist of one or more platforms supported by outrigger beams, brackets, poles, legs, uprights, posts, frames, or similar rigid support.
Frame Scaffold or Fabricated Frame: Platform(s) supported on fabricated end frames with integral posts, horizontal bearers, and intermediate members. It is the most common type of supported scaffolding because it is economical, easy to set up and tear down, and the most versatile.
Manually Propelled/Mobile: Unpowered, portable, caster- or wheel-mounted supported scaffold.
Pump Jack: Platform supported by vertical poles and movable support brackets.
Ladder Jack: Platform resting on brackets attached to ladders.
Fixed Scaffolds - Safety Hazards
Tube and Coupler: Platform(s) supported by tubing, erected with coupling devices connecting uprights, braces, bearers, and runners.
Pole: Posts with fixed connection points that accept runners, bearers, and diagonals, also made of wood, that can be interconnected at predetermined levels.
Specialty: Scaffold types designed for a narrow and very specific range of applications. Includes plasterers', decorators', and other large-area scaffolds; bricklayers' square scaffolds; horse scaffolds; outrigger scaffolds; step, platform, and trestle ladder scaffolds; form and carpenter's bracket scaffolds; window jack scaffolds; crawling boards and chicken ladders; and roof bracket scaffolds.
Knowledge Check Choose the best answer for the question.
1-3. What is the most common type of supported scaffold in use?
You forgot to answer the question!
