Fixed Ladder Safety Systems

The employer must ensure:

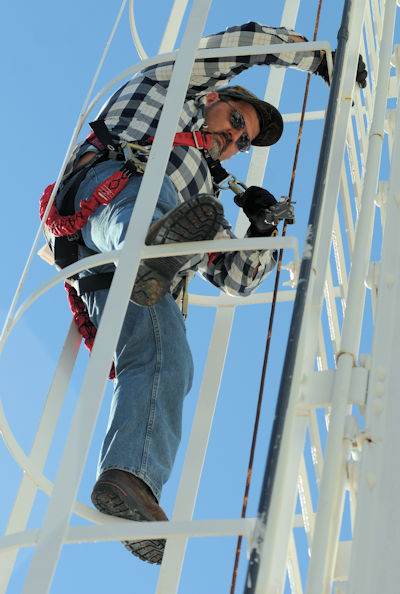

Employee using a ladder safety system in addition to a cage.

  • Each ladder safety system allows the employee to climb up and down using both hands and does not require that the employee continuously hold, push, or pull any part of the system while climbing;
  • The connection between the carrier or lifeline and the point of attachment to the body harness or belt does not exceed 9 inches (23 cm);
  • Mountings for rigid carriers are attached at each end of the carrier, with intermediate mountings spaced, as necessary, along the entire length of the carrier so the system has the strength to stop employee falls;
  • Mountings for flexible carriers are attached at each end of the carrier and cable guides for flexible carriers are installed at least 25 feet (7.6 m) apart but not more than 40 feet (12.2 m) apart along the entire length of the carrier;
  • The design and installation of mountings and cable guides does not reduce the design strength of the ladder; and
  • Ladder safety systems and their support systems are capable of withstanding, without failure, a drop test consisting of an 18-inch (41-cm) drop of a 500-pound (227-kg) weight.

Personal Fall Protection Systems

Body belts, harnesses, and other components used in personal fall arrest systems, work positioning systems, and travel restraint systems must meet the requirements of OSHA Standard 1910.140, Personal fall protection systems.

Knowledge Check Choose the best answer for the question.

2-11. Each ladder safety system should allow the employee to _____.
