114 Walking-Working Surfaces and Fall Protection

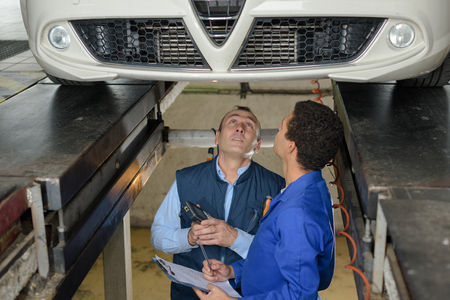

Repair, Service, and Assembly Pits Less Than 10 Feet Deep

The use of a fall protection system is not required for a repair pit, service pit, or assembly pit that is less than 10 feet (3 m) deep, provided the employer:

• Limits access within 6 feet (1.8 m) of the edge of the pit to authorized employees trained in accordance with OSHA Standard 1910.30;
• Applies floor markings at least 6 feet (1.8 m) from the edge of the pit in colors that contrast with the surrounding area; or places a warning line at least 6 feet (1.8 m) from the edge of the pit as well as stanchions that are capable of resisting, without tipping over, a force of at least 16 pounds (71 N) applied horizontally against the stanchion at a height of 30 inches (76 cm); or places a combination of floor markings and warning lines at least 6 feet (1.8 m) from the edge of the pit. When two or more pits in a common area are not more than 15 feet (4.5m) apart, the employer may comply by placing contrasting floor markings at least 6 feet (1.8 m) from the pit edge around the entire area of the pits; and
• Posts readily visible caution signs that meet the requirements of OSHA Standard 1910.145, Specifications for accident prevention signs and tags, and state "Caution-Open Pit."

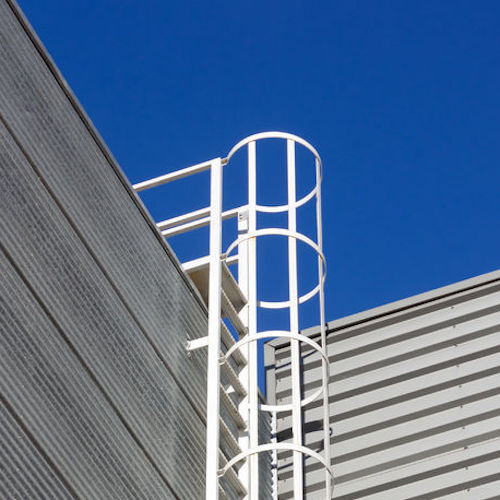

Fixed Ladders

When a one-section fixed ladder is equipped with a personal fall protection or a ladder safety system or a fixed ladder is equipped with a personal fall arrest or ladder safety system on more than one section, the employer must ensure:

• The personal fall arrest system or ladder safety system provides protection throughout the entire vertical distance of the ladder, including all ladder sections; and
• The ladder has rest platforms provided at maximum intervals of 150 feet (45.7 m).

The employer must ensure ladder sections having a cage or well if:

• Are offset from adjacent sections; and
• Have landing platforms provided at maximum intervals of 50 feet (15.2 m).
• The employer may use a cage or well in combination with a personal fall arrest system or ladder safety system provided that the cage or well does not interfere with the operation of the system.

Knowledge Check Choose the best answer for the question.
