603 Stairway and Ladder Safety

Stair Rail Requirements

A stair rail (also referred to as a stair rail system) is defined as a vertical barrier that is erected along the exposed sides of stairways to prevent falls. It typically includes a top rail and may also include a mid-rail or other components.

The purpose of stair rails is to provide both physical support and safety by reducing the risk of falls in workplace environments where stairs are present. They are a critical safety component for workplaces with elevated walking surfaces, such as construction sites, warehouses, and industrial settings.

OSHA has set specific standards and requirements that must be followed to ensure stair rails are properly designed and installed to minimize hazards. The requirements include:

• Load Bearing Capacity:The stair rail system must be strong enough to withstand a force of at least 200 pounds applied in any direction at any point along the top rail. This ensures that the rail can support the weight and pressure exerted by an individual leaning or falling against it.
• Mid-rail Requirements: If a mid-rail is used, it must be installed midway between the top rail and the stairway steps. This additional rail provides extra protection to prevent individuals from slipping through gaps between the rails, especially in areas where small tools or materials might be carried.
• Surface and Design: The surface of the stair rail system must be smooth to prevent injuries such as punctures, cuts, or scrapes. Workers should be able to hold the rail securely without the risk of snagging their clothing, gloves, or tools on rough or protruding surfaces. The ends of stair rail systems and handrails must be constructed so as not to constitute a projection hazard.
• Handrail Integration:
  • If the stair rail also serves as a handrail (i.e., it is used as a grip for support when ascending or descending stairs), OSHA requires that the top rail be designed so that it is easy to grasp. This means it should have a diameter or size that allows a firm and comfortable grip.

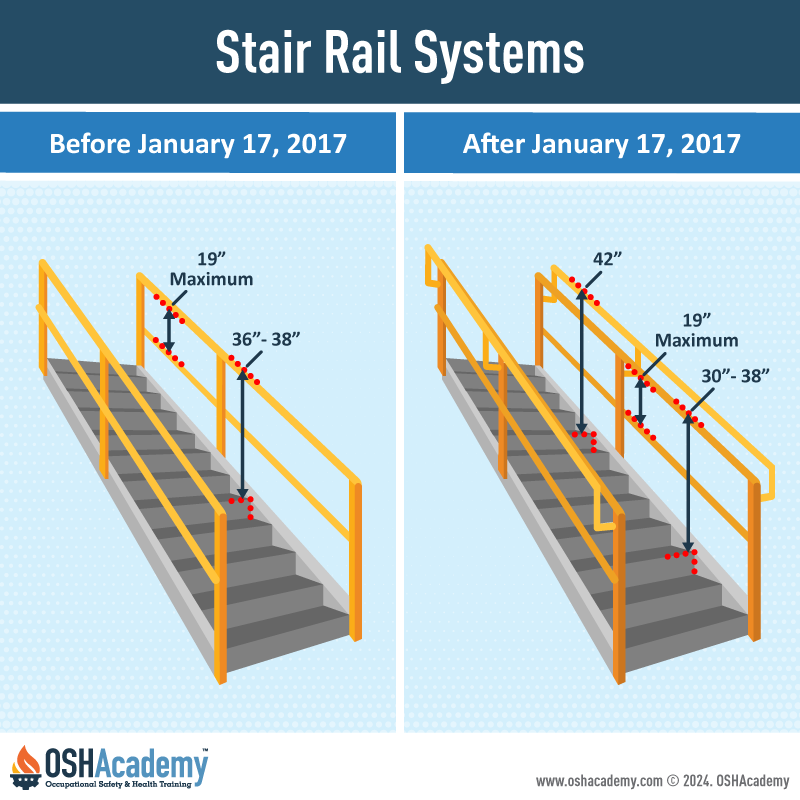

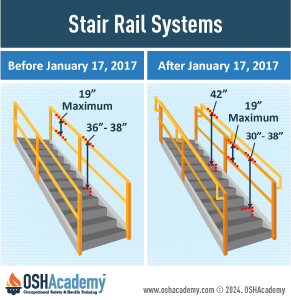

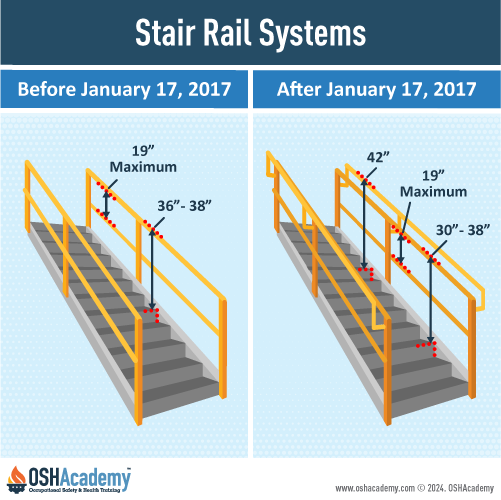

  • If the stair rail system has a separate handrail, the handrail should also meet specific OSHA standards, which include being between 30 to 38 inches in height above the leading edge of the stair tread.

These guidelines are part of OSHA’s broader regulations for walking and working surfaces, specifically those detailed under 29 CFR 1910.28 and 1910.29 for general industry, and 29 CFR 1926.1052 for construction environments.

Knowledge Check Choose the best answer for the question.
