Self-Retracting Lanyard/Lifeline
Self-retracting lanyards and lifelines offer more freedom to move than shock-absorbing lanyards.
The Impact of Swing Distance
They have a drum-wound line that unwinds and retracts as the worker moves. If the worker falls, the drum immediately locks, which reduces free-fall distance to about 2 feet - if the anchorage point is directly above the worker.
Some self-retracting lanyards will reduce free-fall distance to less than one foot. Self-retracting lanyards are available in lengths up to 20 feet. Self-retracting lifelines, which offer more freedom, are available in lengths up to 250 feet.
- Self-retracting lanyards and lifelines that limit free-fall distance to 2 feet or less must be able to hold at least 3,000 pounds with the lanyard (or lifeline) fully extended.
- Self-retracting lanyards that don't limit free-fall distance to 2 feet must be able to hold at least 5,000 pounds with the lanyard (or lifeline) fully extended.

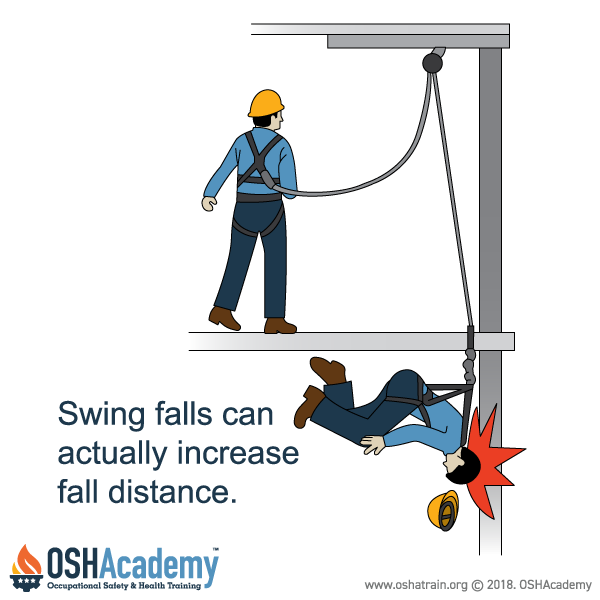

Swing Distance
If you use a self-retracting lanyard or lifeline, work below the anchorage to avoid a swing fall. The farther you move away from the anchorage, the farther you will fall and the greater your risk of swinging back into a hard object. Swing falls are hazardous because you can hit an object or a lower level during the pendulum motion.
Knowledge Check Choose the best answer for the question.
3-7. Why is it important to work directly under the anchorage when using a self-retracting lifeline?
You forgot to answer the question!
