Suspension Scaffolds
Suspended scaffolds are platforms suspended by ropes, or other non-rigid means, from an overhead structure.
Suspended scaffolds are platforms suspended by ropes, or other non-rigid means, from an overhead structure.
Suspended scaffolds are commonly used in construction, maintenance, and inspection activities on the exterior of buildings, bridges, or other structures where access to elevated work areas is required. Types of suspended scaffolds include:

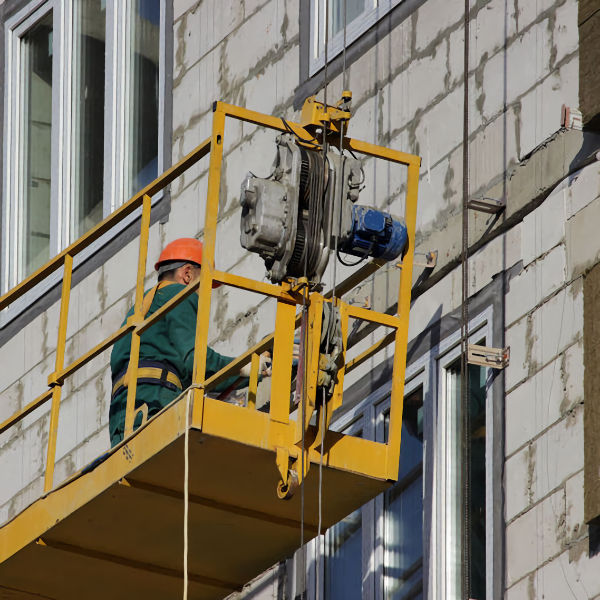

- Two-point (swing stage): Platform supported by hangers (stirrups) suspended by two ropes from overhead supports and equipped with a means to permit the platform to be raised and lowered.
- Single-point Adjustable: Platform suspended by one rope from an overhead support and equipped with a means to permit the platform to be moved to desired working levels.
- Catenary: Platform supported by two essentially horizontal and parallel ropes attached to structural members of a building. Additional vertical pickups may also provide support.
- Multi-point Adjustable: Platform(s) suspended by more than two ropes from overhead supports and equipped with a means to permit the platform to be raised and lowered. Includes chimney hoists.
- Interior Hung: Platform suspended from the ceiling or roof structure by fixed-length supports.
- Needle Beam: A platform suspended from needle beams.
- Multi-level: Two-point or multi-point adjustable suspension scaffold with a series of platforms at various levels resting on common stirrups.
- Float(ship): Braced platform resting on two parallel bearers and hung from overhead supports by ropes of fixed length.
Knowledge Check Choose the best answer for the question.
1-4. Which type of scaffold is installed using ropes or other non-rigid means?
You forgot to answer the question!
